Electric Chain Hoist Hand Held Remotes
Built for the Work That Demands Reliability
Motion Labs hand held remotes provide a reliable, straightforward operator interface for electric chain hoist control systems. Each unit connects via a 26-conductor cable and is designed for consistent performance in production and industrial environments.
Enclosures are constructed from durable polyamide and polyester materials to withstand impact and regular handling. All models feature rugged aluminum faceplates, clearly arranged direction switches, and color-coded LED indicators for immediate visual feedback. The layout is designed to reduce operator error and improve response time during operation.

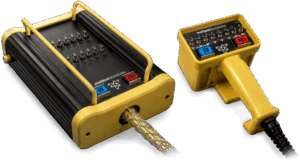

Small Frame Hand Held Remote
Compact. Capable. Ready to Work.
Perfect for four, six, or eight channel systems, the small frame remote delivers powerful control in a lightweight, ergonomic design. Its injection-molded yellow housing is easy to spot and comfortable to handle, making it ideal for fast-paced environments.
Large Frame Hand Held Remote
Scale Your Control Without Limits
Need more reach? The large frame remote expands your capability, allowing control of multiple systems and up to 32 hoists from a single device. It’s the go-to solution when your rig grows and precision matters more than ever.
XL Hand Held Remote
Maximum Control. One Device.
When your system demands more than 32 channels, the XL remote rises to the challenge. Built for large-scale productions and complex rigging, it puts complete system control in the palm of your hand.
Let’s talk about your system.
Contact Motion Labs today to find the right remote for your application.
| Part # | Description |
|---|---|
| A-16-301-0001 | Remote Hand Held, 4Channel, Yellow, 10FT Tail |
| A-16-301-0002 | Remote Hand Held, 6Channel, Yellow, 10FT Tail |
| A-16-301-0003 | Remote Hand Held, 8Channel, Yellow, 10FT Tail |
| A-16-301-0004 | Remote Hand Held, 8Channel, Yellow, 25FT Tail |
| A-16-301-0005 | Remote Hand Held, 8Channel, Yellow, 10FT Tail, Invisible Kill, Red Go Switch |
| A-16-301-0006 | Remote Hand Held, 4Channel, Yellow, 25FT Tail |
| A-16-301-0007 | Remote Hand Held, 8Channel, Yellow, 10FT Tail, Invisible Kill, Red Go Switch, Logo LK0016L |
| A-16-301-0009 | Remote Hand Held, 8Channel, Yellow, 10FT Tail, Wire Mesh Strain Relief |
| A-16-301-0011 | Remote Hand Held, 8Channel, Yellow, 10FT Tail, E-Stop Non-Illuminated Mushroom Kill |
| A-16-301-0012 | Remote Hand Held, 4Channel, Yellow, 10FT Tail, High Speed |
| A-16-301-0013 | Remote Hand Held, 8Channel, Yellow, 10FT Tail, Custom Engraving |
| A-16-301-0014 | Remote Hand Held, 8Channel, Yellow, 10FT Tail, E-Stop Non-Illuminated Mushroom, Invisible Kill |
| A-16-301-0015 | Remote Hand Held, 8Channel, Yellow, 10FT Tail, Customer Logo |
| A-16-301-0016 | Remote Hand Held, 8Channel, Yellow, 10FT Tail, Invisible Kill, Red Go Switch, Wire Mesh Cord Grips, Logo LK0016L |
| A-16-301-0017 | Remote Hand Held, 4Channel, Yellow, 10FT Tail, Channels 5-8 |
| A-16-301-0018 | Remote Hand Held, 4Channel, Yellow, 10FT Tail, Channels “A,B,C,D” |
| A-16-301-0019 | Remote Hand Held, 8Channel, Yellow, 10FT Tail, CSM Heatshrink on Tail |
| A-16-301-0020 | Remote Hand Held, 8Channel, Yellow, 10FT Tail, NO KILL |
| A-16-301-0021 | Remote Hand Held, 8Channel, Yellow, 50FT Tail |
| A-16-301-2001 | Remote Hand Held, 4Channel, Yellow, 10FT Black Tail |
| A-16-301-2003 | Remote Hand Held, 8Channel, Yellow, 10FT Black Tail |
| A-16-302-0001 | Remote Hand Held, 12Channel, Yellow, 5FT Tail |
| A-16-302-0002 | Remote Hand Held, 16Channel, Yellow, 5FT Tail |
| A-16-302-0003 | Remote Hand Held, 24Channel, Yellow, 5FT Tail |
| A-16-302-0004 | Remote Hand Held, 32Channel, Yellow, 5FT Tail |
| A-16-302-0005 | Remote Hand Held, 24Channel (4X6), Yellow, 5FT Tail |
| A-16-302-0006 | Remote Hand Held, 32Channel, Yellow, 5FT Tail, Top Out |
| A-16-302-0007 | Remote Hand Held, 18Channel, Yellow, 5FT Tail |
| A-16-302-0011 | Remote Hand Held, 12Channel, Yellow, 5FT Tail, No Knobs |
| A-16-302-0013 | Remote Hand Held, 12Channel (3X4), Yellow, 5FT Tail |
| A-16-302-0014 | Remote Hand Held, 16Channel, Yellow, 5FT Tail, Invisible Kill, Red Go Switch |
| A-16-302-0015 | Remote Hand Held, 8Channel, Yellow, 10FT Tail, Key Switch |
| A-16-302-0016 | Remote Hand Held, 24Channel (4X6), Yellow, 10FT Tail |
| A-16-302-0017 | Remote Hand Held, 16Channel, Yellow, Customer Logo, 5FT Tail |
| A-16-302-0018 | Remote Hand Held, 24Channel, Yellow, Customer Logo, 5FT Tail |
| A-16-302-0019 | Remote Hand Held, 8Channel (2X4), Yellow, 5FT Tail |
| A-16-302-0020 | Remote Hand Held, 24Channel, Yellow, 10FT Tail |
| A-16-302-0021 | Remote Hand Held, 16Channel, Yellow, 5FT Tail, CSM Heat shrink on Tail |
| A-16-303-0001 | Remote Hand Held, 48 Channel, 6X8, Yellow, 10′ Tail (8′ External) |
| A-16-303-0003 | Remote Hand Held, 24Channel, 6X4, Yellow, 5FT Tail |
| A-16-303-0004 | Remote Hand Held, 40 Channel, 5X8, Yellow, 10′ Tail (8′ External) |
| A-16-305-0001 | Remote Hand Held, VFD, 1 Channel, Joystick, Run Enable, 25′ Tail |
| A-16-305-0002 | Remote Hand Held, 2Channel, Joystick, Go, Selector Switch, Han F+B |
| A-27-001-0001 | Pendant Assembly, 1Channel, L14-20P, 42IN 16/4 SOW Tail, L14-50 |
| A-27-001-0002 | Pendant Assembly, 1Channel, L14-20P, 42IN 16/4 SOW Tail, L14-54 |
| A-27-001-0004 | Pendant Assembly, 2Channel, L14-20, P, 2X 18/4 SJ 3FT Tail, Pinout TL-L14-50 |
| A-27-001-0005 | Pendant Assembly, 1Channel, 4Pin XLR, P, 18/4 SJ 30IN Tail, XLR-4-02, XACA201 |
| A-27-001-0006 | Pendant Assembly, 1Channel, L14-20P, 42IN 16/4 SOW Tail, L14-50, XACA201 |
| A-27-001-0007 | Pendant Assembly, 1Channel, Bare End, 42IN 16/4 SOW Tail, XACA201, XC01 Color Code |
| A-27-001-0008 | Pendant Assembly, 1Channel, L14-20P, 66IN 16/4 SOW Tail, 5FT finished length, L14-50 |
| A-27-002-0001 | Pendant Assembly, 1Channel, 9965C, P, 16/3 SOW 42IN Tail, NN01-50 |
| A-27-002-0002 | Pendant Assembly, 1Channel, 16/3 SOW 36IN Tail |
| A-27-003-0001 | Pendant Assembly, 1Channel, 3Pin XLR, P, 18/3 SJ 30IN Tail, XLR-3-01 |
| A-27-003-0002 | Pendant Assembly, 1Channel, 4Pin XLR, P, 18/4 SJ 30IN Tail, XLR-4-02 |
| A-27-004-0001 | Pendant Assembly, 1 Channel, C7-30 Control Break-In |
| A-27-004-0002 | Pendant Assembly, 1 Channel, P14-01 Control Break-In |
| A-27-004-0500 | Pendant Adapter, 1 Channel, C7-30 Control Break-In, L14-20C |
| A-27-004-1001 | Pendant Assembly, 1 Channel, C7-30 Control Break-In, No Pendant |
